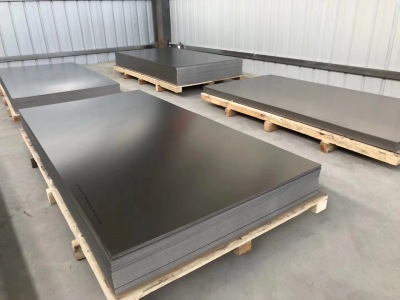

Titanium plate/belt (0.3-60.0) × (400-1000) × (1000-3500) mm (cold rolled plate, hot rolled plate)
Titanium tube Φ(3-210) × (0.2-10.0) ×L (rolled pipes, extruded pipes)
Titanium ring Outer diameter φ(100-1200) × inner diameter Φ(100-1000) × height (20-800) mm
Titanium round cake Φ(150-1200) × (20-800) mm
Titanium wire Φ(0.1-7.0) ×L
1. Introduction to TA18 materials
TA18 is a low-alloy near-alpha titanium alloy with nominal composition Ti-3Al-2.5V, developed specially for cold-formable tubing. It features excellent cold forming and welding performance, its room-temperature strength is 20%~50% higher than commercially pure titanium, and it possesses reliable corrosion resistance in various media. TA18 outperforms TC4 alloy in weldability and cold workability.
TA18 seamless titanium tubes are designed for hydraulic and fuel pipeline systems of aircraft and aero-engines, widely adopted on all types of military and civil aerospace aircraft. Thanks to its outstanding comprehensive performance, TA18 is the preferred material for lightweight high-pressure aircraft conduits.
2. Technical standards of TA18 materials
GB/T3620.1-2016 Titanium and Titanium Alloy Grades and Chemical Compositions
GB/T 3621-2007 ASTM/B265 Titanium and Titanium Alloy Sheet
GB/T2965 -2007 ASTM/B348 Titanium and Titanium Alloy Rod Material
GB/T 3624-2010 ASTM/B337 Titanium and Titanium Alloy Seamless Tube
GB/T16598-2013 ASTM/B381 Titanium & titanium alloy tubes for heat exchanger and condenser
GB/T13810-1997 ASTM/F136 Titanium and titanium alloy processing materials for surgical implants
GB/T3623-2007 ASTM/B863 titanium and titanium alloy wire
ASTM/B265 Titanium and Titanium Alloy Strip & Foil
3. Chemical composition of TA18
| Brand | Chemical composition (wt%) | |||||||||
| Ti | Fe | C | N | H | O | Al | V | Single impurity | Total impurities | |
| TA18 | Bal | ≤0.25 | ≤0.08 | ≤0.05 | ≤0.015 | ≤0.12 | 2.0~3.5 | 1.5~3.0 | ≤0.10 | ≤0.40 |
4. TA18 physical properties
Density: 4.47g/cm³
Room temperature elastic modulus: 118~123GPa
Phase transformation temperature: 925℃
Hardness: 15~17HRC
Standard specified mechanical properties of TA18 titanium alloy
| Standard | Product form | Delivery state | Specifications/mm | Sampling direction | Room temperature mechanical properties | High temperature mechanical properties | |||||||
| Rm/MPa | Rp0.2/MPa | Elongation A/% | Bending angle α/(°) | 350℃ | 400℃ | ||||||||
| Rm/MPa | σ100h/MPa | Rm/MPa | σ100h/MPa | ||||||||||
| Minimum required value | |||||||||||||
| GB/T3621-2007 | Plate | M | 0.5~1.0 >1.0~2.0 >2.0~4.0 >4.0~5.0 >5.0~10.0 |
LT | 590~735 | – | 25 25 20 15 15 |
100 70 60 60 60 |
340 | 320 | 310 | 280 | |
| GJB 3423A-2008 | Tube | M | Outer diameter: >8~52 | LT | 620 | 515 | 15 | – | – | – | – | – | |
| GB/T26058-2010 | Tube | R | 25~210 | LT | Test on actual product | Test on actual product | Test on actual product | – | – | – | – | – | |
