Description
Scope of supply for Aviation Group

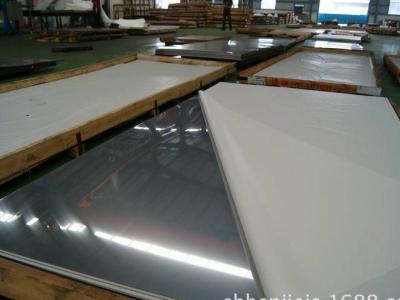

Forgings, round rods, steel plates, rings, seamless pipes, steel plates/steel belts, capillaries, wire welding materials, welcome to inquire!
1. Inconel 601 material introduction
Inconel 601, an alloy material. It has excellent oxidation resistance, good carbonization resistance, good oxidation resistance, sulfur-containing atmosphere, and good mechanical properties at room temperature and high temperature. It has good stress corrosion and cracking resistance. Since the carbon content and grain size are controlled, 601 has a high creep fracture strength, it is recommended to use 601 in areas above 500℃.
2. Inconel 601 chemical composition
| alloy | % | In | Cr | Fe | C | Mn | And | Cu | Al | P | S |
| Inconel 601 | Minimum value | 58.0 | 21.0 | margin | – | – | – | – | 1.0 | – | – |
| Maximum value | 63.0 | 25.0 | 0.10 | 1.50 | 0.50 | 1.0 | 1.7 | 0.020 | 0.015 |
3. Inconel 601 material properties
| density | 8.1 g / cm3 | |||
| Melting point | 1320-1370℃ | |||
| Alloy and status | tensile strength
Rm N/mm2 |
Yield of yield
RP0.2N/MM2 |
Elongation
A5 % |
Brinell hardness
HB |
| Annealing treatment | 650 | 300 | 30 | – |
| Solid solution treatment | 600 | 240 | 30 | ≤220 |
4. Inconel 601 material characteristics
- Excellent oxidation resistance at high temperatures
- Very good resistance to carbonization
- It can have a good antioxidant sulfur-containing atmosphere
- Good mechanical properties at room temperature and high temperature
- Good stress corrosion cracking resistance. Since the carbon content and grain size are controlled, 601 has a high creep fracture strength, so 601 is recommended in the field above 500°C.
- The metallographic structure of Inconel 601 is a face-centered cubic lattice structure.
5. Corrosion resistance of Inconel 601
An important property of Inconel 601 alloy is its ability to resist oxidation at temperatures up to 1180°C. Even under very severe conditions, such as during heating and cooling cycles, 601 can form a dense oxide film to obtain high peel resistance. Inconel 601 has good resistance to carbonization. Due to the high chromium and aluminum content, 601 has good oxidation resistance in a high-temperature sulfur-containing atmosphere.
6. Inconel 601 application field
- Pallets, baskets and tool fixtures for heat treatment factories.
- Wire split annealing and radiation tubes, high-speed gas burners, wire mesh belts in industrial furnaces.
- Isolation tanks in ammonia reforming and catalytic support grids in nitric acid manufacturing.
- Exhaust system components
- Combustion chamber of solid waste incinerator
- Pipe support and soot treatment components
- Exhaust gas detoxification system components
- Oxygen reheater
