Description
Scope of supply of Aviation Group:

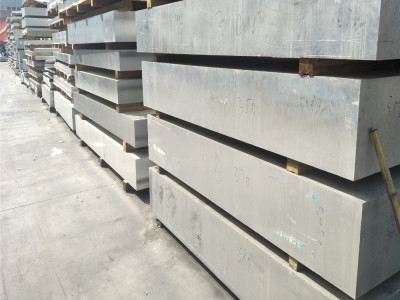

It can be customized non-standard, aluminum plate (whole plate/cut), aluminum rod, aluminum forgings, aluminum tubes, aluminum profiles, etc. Welcome to inquire!
1. Introduction to 6061 Materials
6061 is a heat-treated reinforced alloy with good formability, weldability, machiningability, and medium strength. It can still maintain good operability after annealing.
The main alloy elements of 6061 alloy are magnesium and silicon, and form Mg2Si phase. If a certain amount of manganese and chromium is contained, the bad effects of iron can be neutralized; sometimes a small amount of copper or zinc is added to improve the strength of the alloy without significantly reducing its corrosion resistance; there is also a small amount of copper in the conductive material to offset the adverse effects of titanium and iron on electrical conductivity; zirconium or titanium can refine grains and control recrystallization structure; in order to improve cutting performance, lead and bismuth can be added. Mg2Si is dissolved in aluminum, so that the alloy is artificially aged and hardened.
6061-T651 is the main alloy of 6061 alloy. It is a high-quality aluminum alloy product produced by heat treatment pre-stretching process. Although its strength cannot be compared with the 2XXX series or 7XXX series, its magnesium and silicon alloys have many characteristics, and have excellent processing performance, excellent welding characteristics, electroplating properties, good corrosion resistance, high toughness, no deformation after processing, dense material without defects, easy polishing, easy coloring film, and excellent oxidation effect.
2, 6061 Chemical Ingredients
| Alloy Medal | silicon
And |
iron
Fe |
copper
Cu |
manganese
Mn |
magnesium
Mg |
chromium
Cr |
Zinc
Zn |
titanium
Of |
other | aluminum
AL |
||
| New grade | Old brand | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Each | total | margin |
| 6061 | LD30 | 0.05 | 0.15 | |||||||||
3. 6061 Physical properties
| Aluminum alloy grade and status | tensile strength
Rm/Mpa |
Yield of yield
Rp0.2/Mpa |
Elongation/% | Hardness/HBWα | density
(20 ℃) (g / cm3) |
| 6061-T6 | 290 | 240 | 10 | 95 | 2.8 |
IV. 6061 Application Areas
The uses of 6061 include aerospace fixtures, electrical fixtures, and communication fields. They are also widely used in automated mechanical parts, precision processing, mold manufacturing, electronics and precision instruments, bridges, cranes, roof frames, transport aircraft, transport ships, etc.
