Scope of supply of Aviation Group:

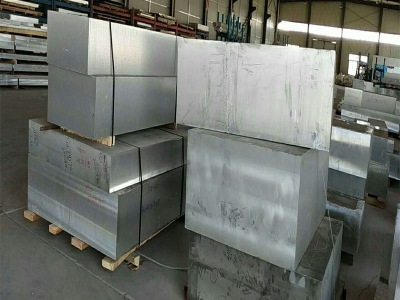

It can be customized non-standard, aluminum plate (whole plate/cut), aluminum rod, aluminum forgings, aluminum tubes, aluminum profiles, etc. Welcome to inquire!
1. Introduction to 5A05 Materials
5A05 is an Al-Mg-based anti-rust aluminum alloy and cannot be strengthened by heat treatment. Cold deformation of alloy can improve strength, the plasticity in the annealed state is higher, and the plasticity in the semi-cooled hardened state is still acceptable. The alloy has good corrosion resistance and good welding properties, and is suitable for spot welding, atomic hydrogen welding, gas welding, and argon arc welding.
2. 5A05 chemical composition
| Alloy Medal | Silicon Si | Iron Fe | 铜 with | Manganese Mn | Magnesium Mg | Zinc Zn | other | Aluminum AL | ||
| New grade | Old brand | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | 0.20 | Each | total | margin |
| 5A05 | LF5 | 0.05 | 0.10 | |||||||
3. 5A05 physical properties
| Aluminum alloy grade and status | tensile strength
Rm/Mpa |
Yield of yield
Rp0.2/Mpa |
Elongation/% | Hardness/HBWα | density
(20 ℃) (g / cm3) |
| 5A05-H112 | 265 | 118 | 15 | – | 2.73 |
4. 5A05 application fields
5A05 is widely used in ship transportation vehicles sheet metal parts, armor plates, high-strength structural parts, welding pipes, fuel tanks, flanges, and marine products components.
