Description
Scope of supply of Aviation Group:

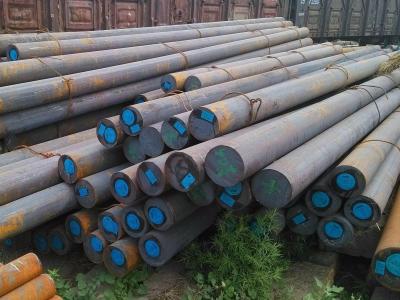

Round rods, steel plates, non-standard forgings, rings, etc., welcome to inquire!
1. Introduction to SKD61 Materials
SKD61 is a hot-working mold bar. SKD11 is a Japanese brand, corresponding to my country’s brand (GB/T 1299-2000) is 4Cr5MoSi V1, which is the most widely used hot-working mold steel.
SKD61 corresponding grade:
Corresponding to Yisheng Baiqian Brand: 8407
Corresponding to Korean brand: STD61
Corresponding to Chinese brand: 4Cr5MoSiV1
Corresponding to US grade: H13
Corresponding to German grade: X40CrMoV51
Corresponding to Japanese Hitachi Grade: DAC
Corresponding to Japanese Datong brand: DHA1
2. Chemical components
| alloy | % | Chromium Cr | Stone Mo | 铜 with | Vanadium V | Carbon C | Manganese Mn | Silicon Si | Phosphorus P | Sulfur S |
| Dc53
Cr8mo2SIV |
Minimum value | 7.80 | 2.00 | – | 0.30 | 0.95 | 0.20 | 0.80 | – | – |
| Maximum value | 8.30 | 2.30 | 0.30 | 0.40 | 1.03 | 2.30 | 1.10 | 0.030 | 0.030 |
3. SKD61 physical performance
1. SKD61 hardness:
Before heat treatment SKD61 is about HRC15~20 (HB200~230)
Hardness after heat treatment: Internal HRC40°~45°Surface HV1000±100
The density is 7.85g per cubic centimeter
Hardness after TD treatment: internal HRC 40°~45° surface HV2500 or above
2. Physical properties of SKD61:
Thermal expansion coefficient [10-6m/(m×k)]
20-100℃ 20-200℃ 20-300℃
10.9 11.9 12.3
Thermal conductivity [W/(m×k)]
20℃ 350℃ 700℃
20.1 23.1 26.1
4. SKD61 application scope
SKD61 is the most widely used in the die casting mold materials for aluminum and zinc. This steel contains high-temperature-resistant high-alloy steel with tungsten components, which is suitable for hot work, aluminum, magnesium, zinc, copper alloy die casting molds, grooved cutters, scissors and hot forging actions, plastic molds, hot work reamers, rolling cutters, general hot work forging molds, hot bolt molds, various tools in the hot room, etc.
In addition, there are the following uses:
1. Suitable for various scissors, inlaid blades, and woodworking blades.
2. Thread rolling mold and wear-resistant slide.
3. Cold heading mold, thermosetting resin mold.
4. Deep drawing mold, cold extrusion mold.
5. Thick sheets with no more than 2MM thickness, high-efficiency blanking die, punching die and imprinting die.
